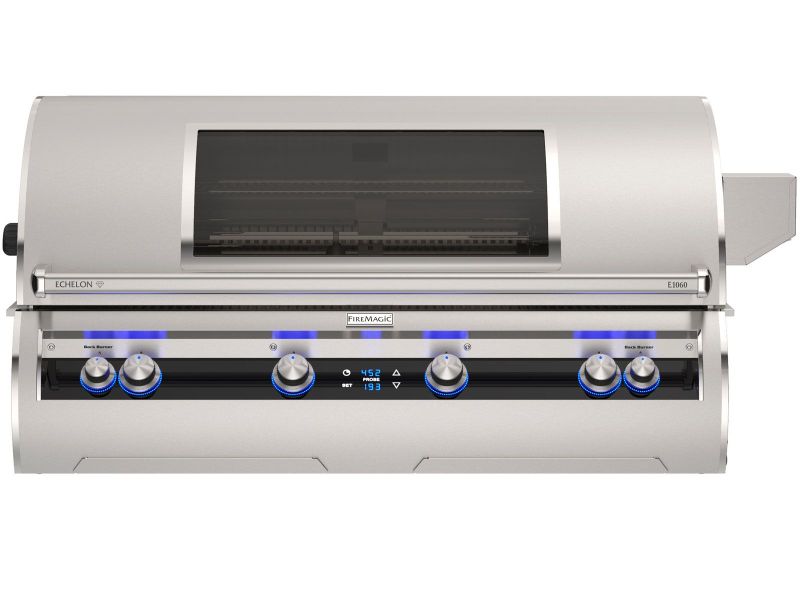

Fire Magic Echelon Diamond E1060i 52-Inch Built-In Gas Grill with Magic Window & Digital Thermometer
SKU:
E1060i-9E1N-W
SKU2:
E1060i-9E1P-W
Key Features
- Modern black glass control panel & digital touchscreen operation with Bluetooth remote capability
- Diamond Sear cooking grids feature a wide, flat top for optimal heat transfer from the burner to the cooking surface
- High-efficiency backburners & heavy-duty rotisserie
- Back-lit control knobs & angled, interior halogen lights let you grill day or night
- Fire Magic grills and accessories are proudly made in the USA
- Integrated smart technology allows remote control from a smartphone
- Double-walled, spring assisted hood opens 90 degrees for easier access and more efficient exhaust
- Features four cast stainless steel natural gas burners, made with 1/4-inch thick walls and precision porting, that combine for 112,000 BTUs
- The warming rack above can be adjusted and moved out of the way when not in use
- Flavor grids have attached heat zone separators, allowing you to create independent heat zones at the surface of the grill for varied cooking options
Description
Make it easier to monitor the cooking process with the Fire Magic Echelon Diamond E1060i 52-Inch Built-In Gas Grill with Magic Window & Digital Thermometer. It features both a digital thermometer and a Magic Window on the double-walled lid to make it easier to keep an eye on things. Backlit control knobs and interior halogen lights allow you to cook with better visibility after dark. It uses four cast stainless steel natural gas burners that generate a total heat output of 112,000 BTUs. The included warming rack is removable and can be moved out of the way entirely when not in use.
Videos
Fire Magic on Fire
Fire Magic Brand
Fire Magic Features
Luxury Outdoor Kitchen Grills
Highlights
For more than 80 years, Fire Magic has been building the world’s finest outdoor gas grills, for people who demand the highest quality and performance. Their passion for manufacturing the best gas grills comes through in the pride of ownership that you’ll enjoy for a lifetime.
Manufacturer
Fire Magic
Collection Name
Echelon Diamond
Model
E1060i-9E1N-W, E1060i-9E1P-W
Item Type
Gas Grill
Configuration
Built-In
Fuel Type
Natural Gas | Propane
Number of Main Burners
4 Burners
Main Grilling Area
1056 square inches
Secondary Grilling Area
344 square inches
Total Grilling Area
1440 square inches
Grilling Surface BTUs
112,000 BTUs
Cooking Grid Dimensions
48" W x 22" D
Downloads
Please select from the Fire Magic product brochures and other documents below to learn more about this product.
Dimensions
All dimensions below are measured in inches and represent the product when fully assembled.
Width
50"
Depth
23.5"
Height
27"
Weight
350 Lbs
Cut Out Dimensions
50" W x 23 1/2" D x 11 1/2" H
Specifications
Specifications, data and other product details are listed below for this Fire Magic item.
Exterior Material
Stainless Steel
Rotisserie Burner BTUs
22,000 BTUs
Exterior Stainless Grade
304 Stainless Steel
Primary Color
Stainless Steel
Main Burner Material
304 Cast Stainless Steel
Cooking Grate Material
Stainless Steel
Flame Tamer Material
Stainless Steel
Infrared Main Burner
Optional
Rotisserie Kit
Included
Heat Zone Separators
Yes
Ignition Type
Hot Surface
Flash Tubes
Yes
Grill Lights
Internal | External
Spring Assisted Hood
Yes
Thermometer
Digital | Smart Phone App
Includes Smoker Box
Yes
WiFi / Bluetooth Enabled
Yes
Marine Grade
No
Made in the USA
Yes
Commercial Grade
Yes
Hose / Regulator Included
Yes
Extra Features
N/A
Warranty
Fire Magic provides a lifetime warranty for cast stainless burners, stainless cooking grids and housings. Stainless flame tamers are warranted for five years, all other components (except ignition and electronic parts) for three years, ignition systems (except batteries) and electronic components (including lights & thermometers) for one year. A limited two year labor warranty covers repairs up to $120. In a multi-user setting (excluding commercial use) this grill is warranted to be free from defects in material and workmanship for the stainless grill housing, burners, cooking grates, brass valves, inner lines and manifold assemblies for five years, all other components (except batteries) are warranted for one year.
