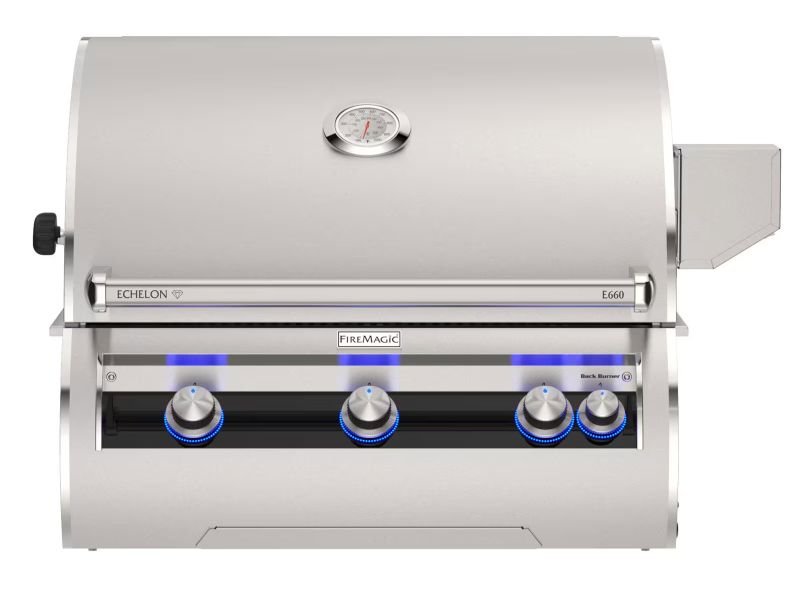

Fire Magic Echelon Diamond E660i 34-Inch Built-In Gas Grill with Analog Thermometer & Infrared Burner
SKU:
E660i-9LAP
SKU2:
E660i-9LAN
Key Features
- Modern black glass control panel & analog thermometer measuring up to 1000°F
- Diamond Sear cooking grids feature a wide, flat top for optimal heat transfer from the burner to the cooking surface
- High-efficiency backburners & heavy-duty rotisserie
- Back-lit control knobs & angled, interior halogen lights let you grill day or night
- Fire Magic grills and accessories are proudly made in the USA
- These grids feature a matte, non-stick surface, and a trapezoidal shape that optimally transfers heat from the burner to the wide surface of the cooking grids
- Double-walled, spring assisted hood opens 90 degrees for easier access and more efficient exhaust
- Reliable hot surface ignition always lights your burners where others might fail
- Flavor grids have attached heat zone separators, allowing you to create independent heat zones at the surface of the grill for varied cooking options
- The warming rack above can be adjusted and moved out of the way when not in use
Description
Modernize your outdoor kitchen with the addition of the Fire Magic Echelon Diamond E660i 34-Inch Built-In Gas Grill with Analog Thermometer & Infrared Burner. This grill comes with an analog thermometer that measures temperatures up to 1,000 degrees Fahrenheit, as well as a contemporary black glass control panel. Alongside its spacious main cooking surface, there is also an infrared burner for additional cooking space. Diamond Sear cooking grids promote an even spread of heat for more efficient and thorough grilling. Its hood is double-walled to ensure heat stays retained, and it has a spring-assisted mechanism for easy opening and closing.
Videos
Fire Magic on Fire
Fire Magic Brand
Fire Magic Features
Fire Magic E660
Luxury Outdoor Kitchen Grills
Highlights
For more than 80 years, Fire Magic has been building the world’s finest outdoor gas grills, for people who demand the highest quality and performance. Their passion for manufacturing the best gas grills comes through in the pride of ownership that you’ll enjoy for a lifetime.
Manufacturer
Fire Magic
Collection Name
Echelon Diamond
Model
E660i-9LAP, E660i-9LAN
Item Type
Gas Grill
Configuration
Built-In
Fuel Type
Natural Gas | Propane
Number of Main Burners
3 Burners
Main Grilling Area
660 square inches
Secondary Grilling Area
288 square inches
Total Grilling Area
948 square inches
Grilling Surface BTUs
75,000 BTUs
Cooking Grid Dimensions
30" W x 22" D
Downloads
Please select from the Fire Magic product brochures and other documents below to learn more about this product.
Dimensions
All dimensions below are measured in inches and represent the product when fully assembled.
Width
31.25"
Depth
23.5"
Height
27"
Weight
245 Lbs
Cut Out Dimensions
31 1/4" W x 23 1/2" D x 11 1/2" H
Specifications
Specifications, data and other product details are listed below for this Fire Magic item.
Exterior Material
Stainless Steel
Rotisserie Burner BTUs
11,000 BTUs
Exterior Stainless Grade
304 Stainless Steel
Primary Color
Stainless Steel
Main Burner Material
304 Cast Stainless Steel + Ceramic Infrared
Cooking Grate Material
Stainless Steel
Flame Tamer Material
Stainless Steel
Infrared Main Burner
One Infrared
Rotisserie Kit
Included
Heat Zone Separators
Yes
Ignition Type
Hot Surface
Flash Tubes
Yes
Grill Lights
Internal | External
Spring Assisted Hood
Yes
Thermometer
Analog
Includes Smoker Box
Yes
WiFi / Bluetooth Enabled
No
Marine Grade
No
Made in the USA
Yes
Commercial Grade
No
Hose / Regulator Included
Yes
Extra Features
N/A
Warranty
Fire Magic provides a lifetime warranty for cast stainless burners, stainless cooking grids and housings. Stainless flame tamers are warranted for five years, all other components (except ignition and electronic parts) for three years, ignition systems (except batteries) and electronic components (including lights & thermometers) for one year. A limited two year labor warranty covers repairs up to $120. In a multi-user setting (excluding commercial use) this grill is warranted to be free from defects in material and workmanship for the stainless grill housing, burners, cooking grates, brass valves, inner lines and manifold assemblies for five years, all other components (except batteries) are warranted for one year.
